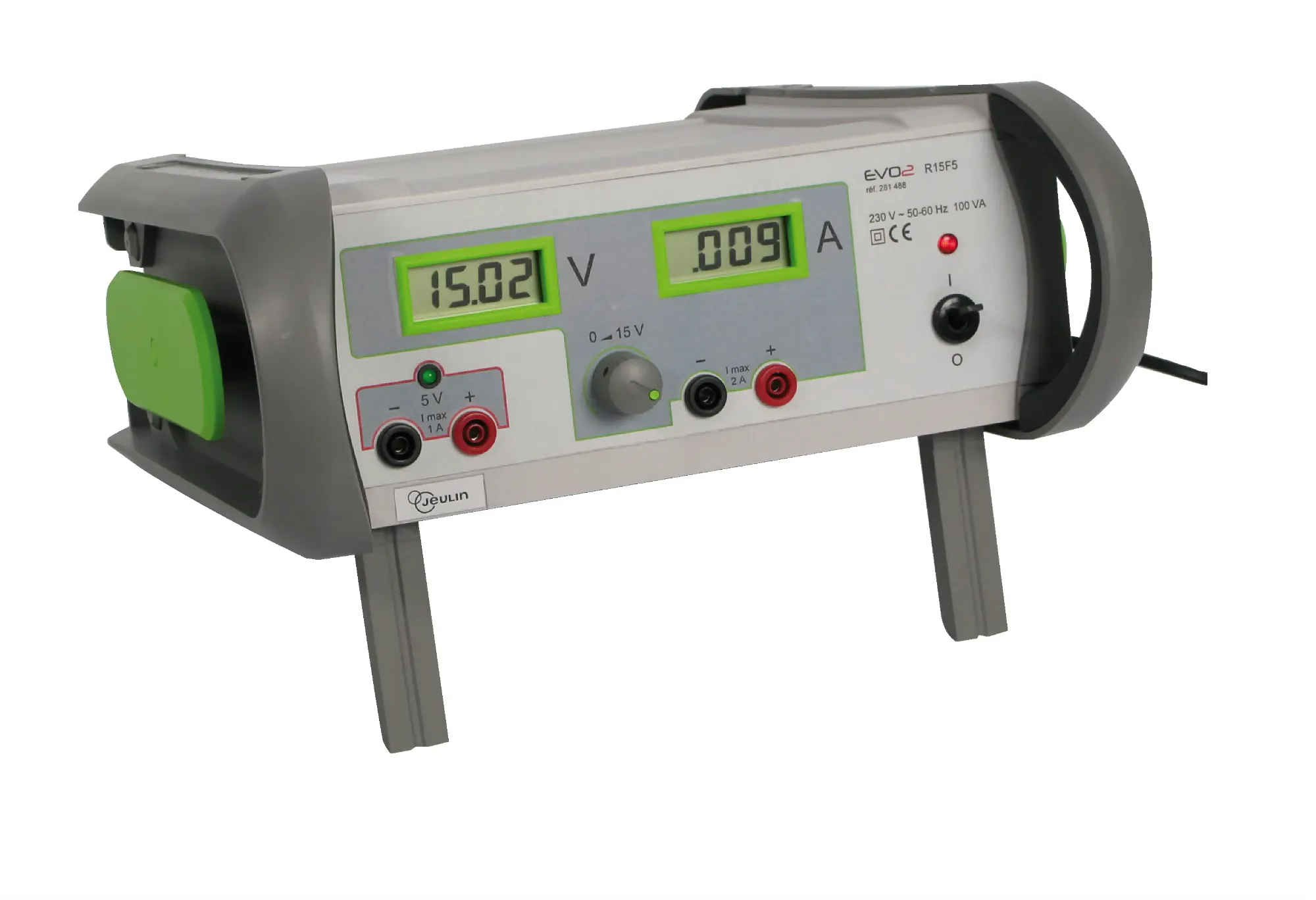

- Double insulation casing in self-extinguishing plastic material
- 2 voltage and current displays
- Safety sockets Ø 4 mm
- Supply of circuits requiring currents up to 2 A
- Voltage 0 to 15 V continuously adjustable
- Fixed 5V output, ideal for powering TTL and CMOS logic circuits
- Complies with standard EN 61010-1
| Number of outputs | 2 |
| Display Points | 2 000 |
| Tension max | 15 V |
| Courant max (A) | 2 |
| Tension | 0 à 15 V |
| Display Type |
LCD |
| Residual Ripple |
< 10 mV |
| Stabilisation | 40 mV (sortie 0 à 15 V), 20 mV (sortie 5V) |
| Sortie CH1 | 5 V |
| Type de Product | Alimentation de laboratoire |
|
Technical characteristics • 2 LCD displays 2,000 points indicating the output voltage and current • Mains supply: 230 V /- 10%, 50-60 Hz • Class II double insulation (no earth connection) • Consumption: 100 VA max. • Protection on the primary by 2 A time-delay fuse (not accessible to the user) • Case dimensions: 305 x 305 x 125 mm • Mass: 4.5 kg |
