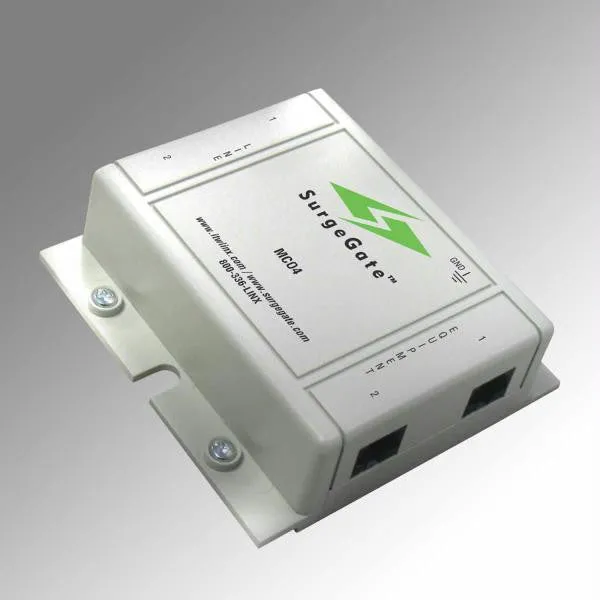

- Towermax Co/4 Module
- analog Station Set And Central Office Line Protector
- Protects Up To 4wires (2pairs) Per Jack. Using Rj11/45 Connectors (2in/2out Pins 3 6 4 5 Protected)
- Autoresetting Technology: Ptc Resistors Open When A Surge Occurs Protecting Your Equipment But Unlike Other Fuses The Ptcs Close Again Once The Surge Passes.
- Expandable Modular System
- Applications: Analog And Central Office Lines For Pbx Or Ksu
- Agency Approval: Ul 497a (secondary)
- Grounding Requirements: Uses Electrical Ac Ground
- Recommended Grounding Impedance: <0.5ohm
- Signal Perfect Circuitry
- Autoresetting Ptcs: 160 Ma (810 Ohms)
- Clamping Level: 260v
- Response Time: 15 Nanoseconds
- Capacitance: <50pf
- Suppression Modes: Metallic And Longitudinal
- Wires Protected: 4wires (2pairs) Per Jack (pins 3 6 4 5)
- Termination Type: Rj11/45
- Brand: Itw Linx
